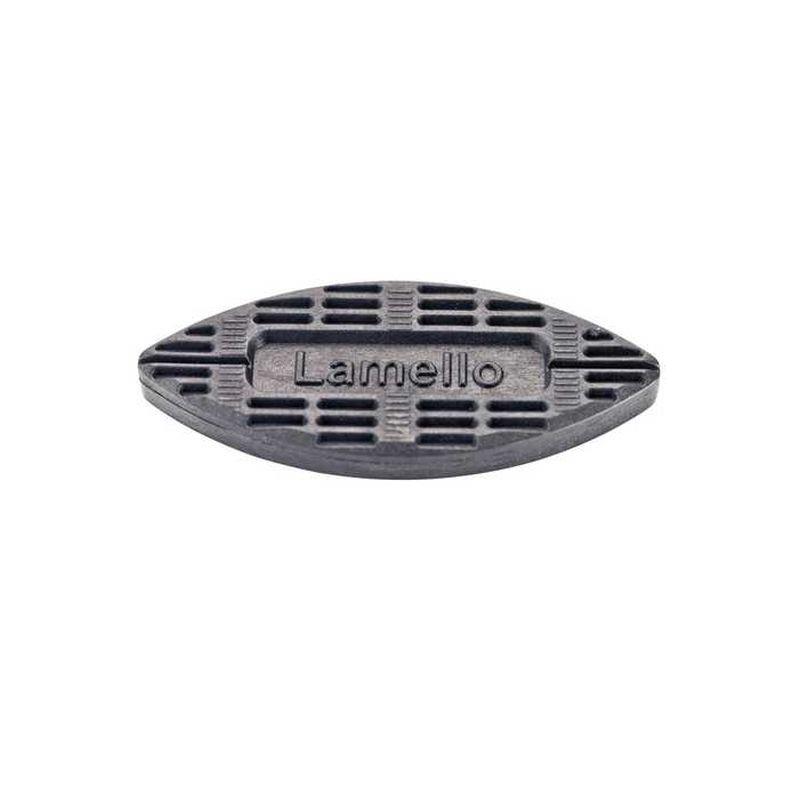

Bisco P is a plastic biscuit which fits into the 7 mm P-System groove and is held in the groove due to its surface structure. Bisco P is used in combination with Clamex or Tenso as a cost-effective alignment element and ensures flushness of the joint. The Bisco can also be used as a dry joint as a test before the work piece is permanently joined with Tenso P and adhesive. Bisco P-14 is used in combination with Clamex P-14 or Tenso P-14; and Bisco P-10 with the same connectors in size P-10.
Features
- Detachable
- Alternating application
- Versatile
- Lateral tolerance
- Shallow depth
Technical Data
- Installation tolerance longitudinal - ± 2
- Installation tolerance radial - ± 0
- Minimum material thickness for surface cuts - 11
- Minimum material thickness for edge cuts - 12
- Minimum material thickness for centre panel - 21
- Minimum material thickness for angle bisector - 18
- Minimum workpiece width - 75
- Self-clamping - No
- Invisible - Yes
- Detachable - No
