Model DSP600 is a 165mm cordless plunge cut saw powered by two 18V Li-ion batteries in series, and features high power comparable to the corded equivalent.
User benefits
- Electric brake
- Variable speed control dial.
- Soft start
- Automatic Torque Drive Technology: Automatically changes the cutting speed according to load condition for an optimum operation
- Brushless motor
- Depth stopper for splinter free cutting
- Bevels -1 to 48 degrees
- Positive stop for bevel adjustment
- Powered by two 18V Li-ion batteries in series to supply energy to the powerful 36V DC motor drive system.
- Compatible with Guide Rail
Technical specifications
Max Cut @ 48º 38 mm
Battery Type Lithium-ion
Voltage 36 (18V x2) v
Blade Diameter 165 mm
Max Cut @ 0º 56 mm
Max Cut @ 45º 40 mm Bore (B) 20 mm
Noise sound pressure 92 dB(A)
Noise sound power 103 dB(A)
Noise K factor 3 dB(A)
No Load Speed 2,500 - 6,300 rpm
Vibration K factor 1.5 m/sec²
Vibration: Cutting Wood 2.5 m/sec²
Net weight 5.1 kg Standard equipment

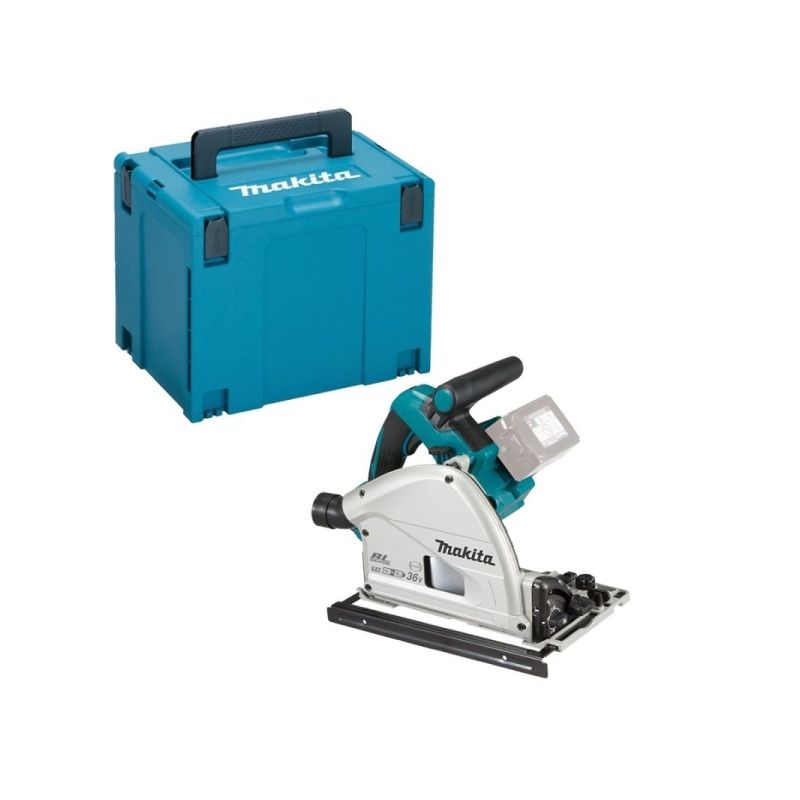

MAKPAC CONNECTOR CASE (TYPE 4)
TCT saw blade
Hex wrench
