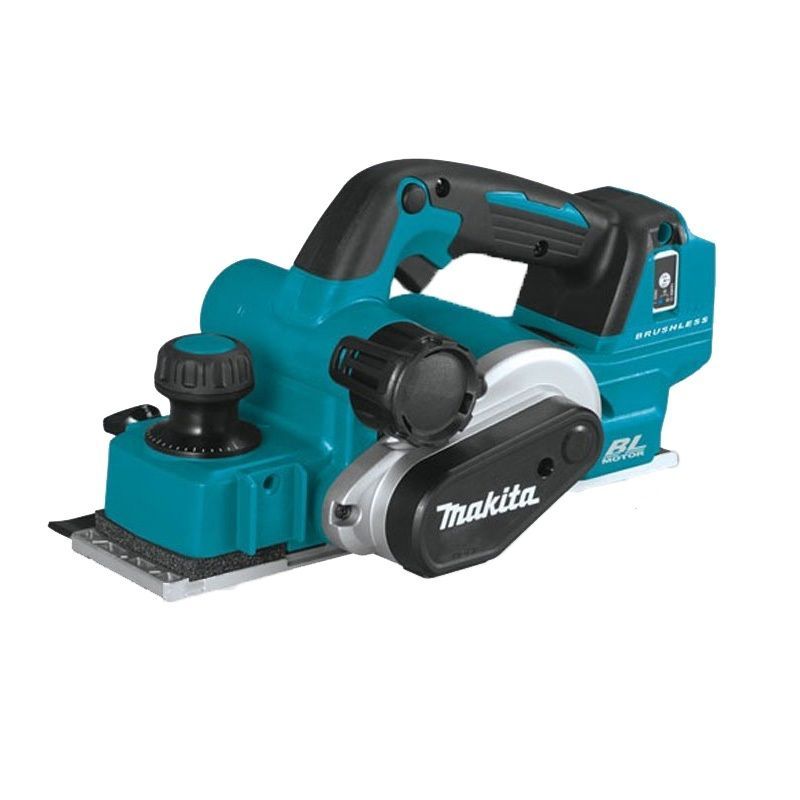

The DKP181Z delivers heavy duty cutting performance with a high powered Brushless Motor, allowing a massive 3mm max.
The DKP181Z delivers heavy duty cutting performance with a high powered Brushless Motor, allowing a massive 3mm max. cutting depth. Coupled with Automatic Torque Drive technology, the planer automatically adjusts speed & torque depending on the load conditions for optimal cutting. Also featuring an electric brake & a foot on the base plate, increasing safety & protecting workpieces from any possible damage. The DKP181Z features AWS*, enabling wireless connection to a compatible Bluetooth vacuum for on demand dust extraction, providing a cleaner & safer work environment. *AWS receiver sold separately.
Features & Benefits:
- 3mm Cutting Depth –high powered brushless motor allows up to a maximum 3mm cutting depth.
- 25mm Shiplapping Cuts –housing design has been re-engineered to allow for up to a 25mm cutting depth.
- 3 Chamfering Grooves –easy chamfering by aligning the groove with the edge of the workpiece. 3 different size grooves allow for different groove dimensions.
- Electric Blade Brake –blade rapidly stops after the trigger has been released. Preventing user injury or damage to the workpiece.
- Automatic Torque Driver Technology (ADT) –automatically changes the cutting speed according to the load conditions for optimum operation.
- Auto-Start Wireless System (AWS) –with optional wireless unit, wireless connection can be made between the tool & an AWS supported vacuum for wirelessly enabling the vacuum to operate when the tools trigger is engaged.
- Left & Right Chip Ejection –easily divert the wood chips either left or right by adjusting the ejection cover plate to the preferred side.
- Foot On Base Plate –protects the workpiece from scratches & damage by raising the base off the work material when not in operation.
Key Features:
- Planning Width: 82mm
- Max Planning Depth: 3mm
- Shiplapping / Rebate: 25mm
- 12,000 RPM
- Shipping Weight: 3.3kg
Specifications:
Voltage | 18 Volt |
Planning Width | 82mm |
Max. Planning Depth | 3mm |
Shiplapping / Rebate | 25mm |
No Load Speed | 12,000 RPM |
Noise | 84db(A) |
Vibration | 5.0m/s² |
Overall Length | 366mm |
Skin Weight | 3.0kg |
Weight (with battery) | 3.6kg |
Included in the box:
- 1 x Guide Rule Assembly Set
- 1 x Blade Gauge Assembly
- 1 x Depth Guide Assembly
- 1 x Socket Wrench 9
- 1 x 82mm T.C Mini Planer Blades
