Descriptions:

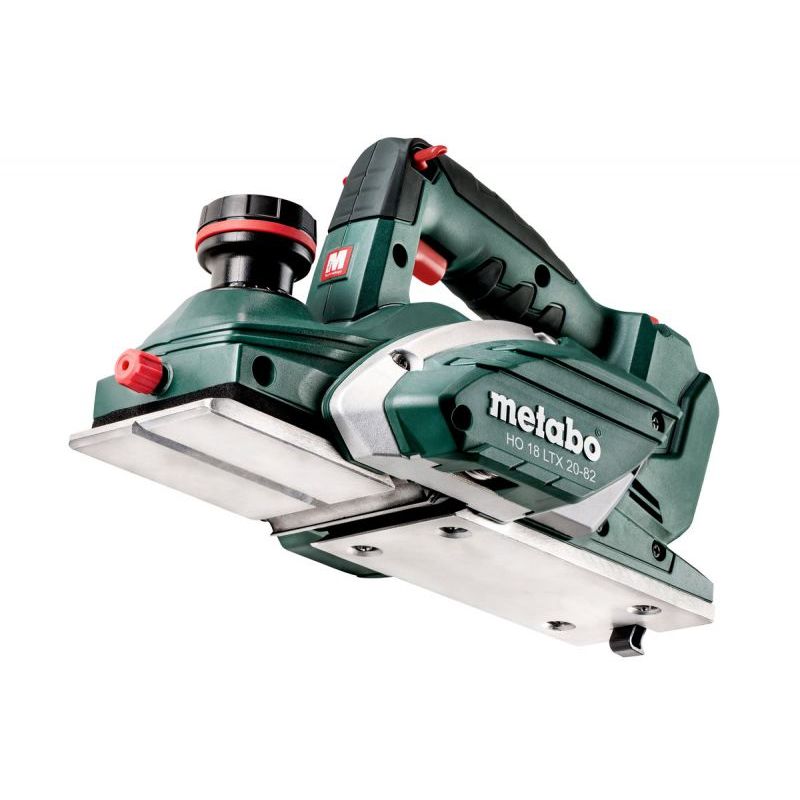

◾Light, compact cordless planer for planing, rebating and chamfering
◾Adjustable planer depth and notch depth
◾Aluminium die cast and milled cut planer base with V-groove for easy chamfering
◾Parallel guide / rip fence for precise guiding of the planer
◾Grip area with non-slip soft-grip surface
◾Extraction possibility by means of connecting an all-purpose vacuum cleaner
◾Angled chip ejection adapter for controlled ejection of the wood shavings
◾Easy to empty textile dust bag for working without extraction facilities
◾Strap on the planer base for stopping the machine and to protect the work piece
◾Easy blade change of the robust reversible carbide planer blades
◾Soft start and overload protection for long service life of motor and drive
Characteristics:
Battery pack voltage
18 V
Planing width
82 mm
Adjustable planing depth
0 - 2 mm
Maximum notch depth
9 mm
No-load speed
16000 rpm
Length of planer base
295 mm
Weight (including battery pack)
3.5 kg / 8 g
Vibration
Planing soft wood
3.3 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
84 dB(A)
Sound power level (LwA)
95 dB(A)
Uncertainty of measurement K
3 dB(A)
Supplied with:
•Reversible carbide planer blades
•Parallel guide / rip fence
•Depth gauge
•Chip ejection adapter
•Textile dust bags
