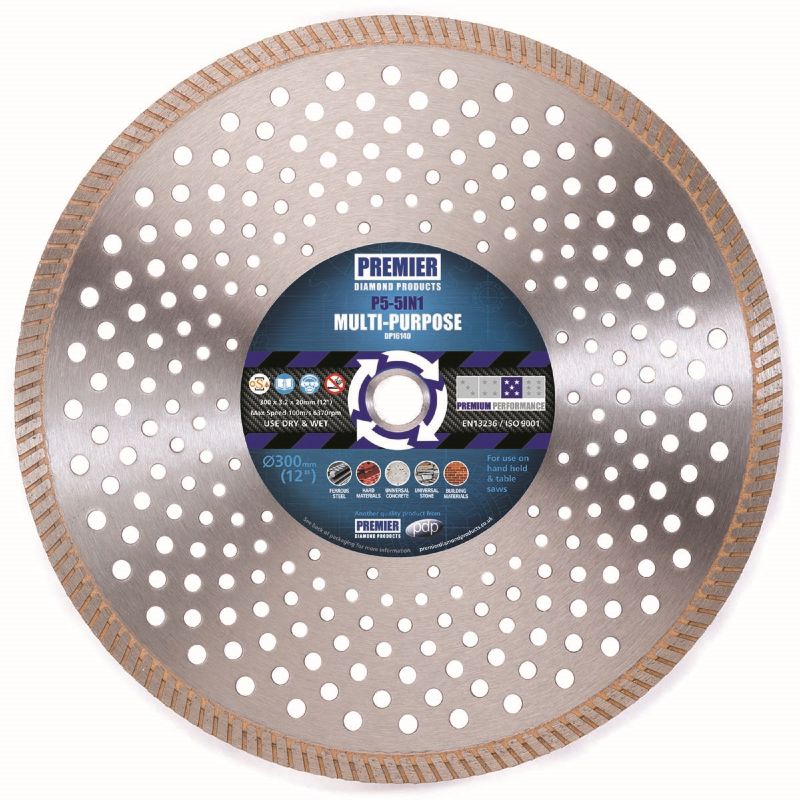

DESCRIPTION: The P5-5in1 blade is renowed for its extremely fast cutting and ability to cut a wide range of materials from steel sections and Indian stone to reinforced concrete and building materials. Diameters 230, 300 & 350mm have a reinforced centre flange to increase strength when cutting harder materials, improving stability and providing straighter cuts. The 5in1 is the ideal choice for all levels of users and is equally at home on large construction sites such as it is on smaller jobs.
MACHINE SUITABILITY: Angle grinder, hand held disc cutter, table saw and wall chaser.
SUITABLE FOR USE ON: Bricks - Class A Engineering, Bricks - Class B Engineering, Bricks - Standard Facing Bricks, Clay Products, Concrete - Beams, Kerbs, Pipes and Slabs, Concrete - Block Paving, Concrete - Flag Stones, Concrete - Flint Aggregate, Concrete - General Purpose, Concrete - Heavy Steel Reinforcement, Concrete - Light Steel Reinforcement, Concrete - Roof Tiles, Concrete Blocks - Medium Density 7 to 12 Newton, Concrete Blocks - Solid Density 12+ Newton, Granite - Blocks and Worktops, Limestone, Sandstone - Indian, Tiles - Slate, York Stone
STANDARDS:
EN13236: European Standard that regulates the safety requirements for super abrasive (diamond) products.
The Organisation for the safety of Abrasives (osa): Members of osa have to imply strict manufacturing, quality and safety procedures in accordance to EN13236.
ISO9001:2010 Quality Management System: Standard designed to help ensure organizations meet the needs of their customers.
DIAMOND BLADE TIPS:
Make certain the blade is suitable for the material before cutting.
Guide the blade straight into the material.
Do not use unnecessary pressure, the weight of the machine is sufficient.
Carry out a slight pendulum movement (forwards, backwards).
If cutting speed reduces you can re-sharpen (dress) diamond segments by making several passes into a highly abrasive material such as, a 3-Newton concrete or cinder (breeze) block.
Specifications
APPLICATION: Cutting
PRODUCT CATEGORY: Diamond Blades
MATERIAL CATEGORY: Multi-Purpose Turbo Rim
PERFORMANCE LEVEL: 5 Star (Premium)
SUITABLE FOR USE ON: Bricks - Class A Engineering, Bricks - Class B Engineering, Bricks - Standard Facing Bricks, Clay Products, Concrete - Beams, Kerbs, Pipes and Slabs, Concrete - Block Paving, Concrete - Flag Stones, Concrete - Flint Aggregate, Concrete - General Purpose, Concrete - Heavy Steel Reinforcement, Concrete - Light Steel Reinforcement, Concrete - Roof Tiles, Concrete Blocks - Medium Density 7 to 12 Newton, Concrete Blocks - Solid Density 12+ Newton, Granite - Blocks and Worktops, Limestone, Marble - Blocks and Worktops, Sandstone - Indian, Tiles - Slate, York Stone
MACHINE TYPE: Angle Grinder, Hand Held Disc Cutter, Table Saw, Wall Chaser
Size: 230 x 2.6 x 10 x 22.2mm (9")
