DESCRIPTION:
The P5-LMA LASERMAX is a versatile premium asphalt blade with 10mm high laser welded segments. A higher concentration of diamonds in each segment means the P5-LMA is ideally suited to the largest of jobs where performance and life expectancy far outweigh the initial cost - this leads to the lowest cost per metre cut. Deep draft segments on diameters 300mm and over ensures protection against undercutting. Diameters 115-230mm are ideal for chasing lightweight blocks.
MACHINE SUITABILITY:
Angle grinder, hand held disc cutter, floor saw, table saw and wall chaser.
SUITABLE FOR USE ON:
Asphalt, Concrete - Green (up to 24 hours old), Concrete - Roof Tiles, Concrete Blocks - Lightweight 3 to 7 Newton, Concrete Blocks - Medium Density 7 to 12 Newton, Cement Screed, Gritstone, Sandstone - Abrasive
STANDARDS:
•EN13236: European Standard that regulates the safety requirements for super abrasive (diamond) products.
•The Organisation for the safety of Abrasives (osa): Members of osa have to imply strict manufacturing, quality and safety procedures in accordance to EN13236.
•ISO9001:2010 Quality Management System: Standard designed to help ensure organizations meet the needs of their customers.
DIAMOND BLADE TIPS:
•Make certain the blade is suitable for the material before cutting.
•Guide the blade straight into the material.
•Do not use unnecessary pressure, the weight of the machine is sufficient.
•Carry out a slight pendulum movement (forwards, backwards).
•If cutting speed reduces you can re-sharpen (dress) diamond segments by making several passes into a highly abrasive material such as, a 3-Newton concrete or cinder (breeze) block.

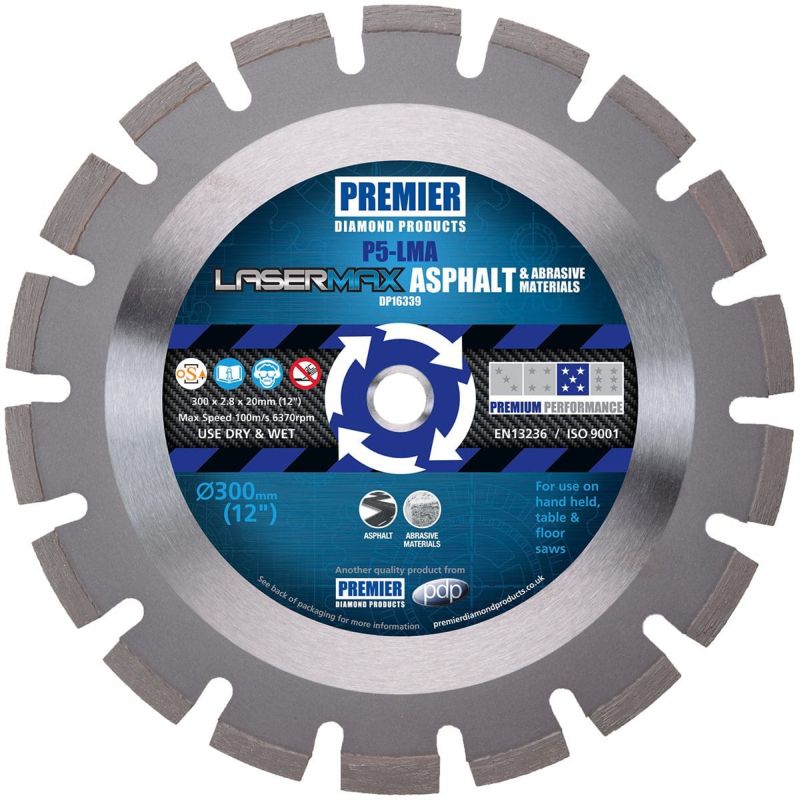

Size: 300 x 2.8 x 10 x 20mm (12˝)
