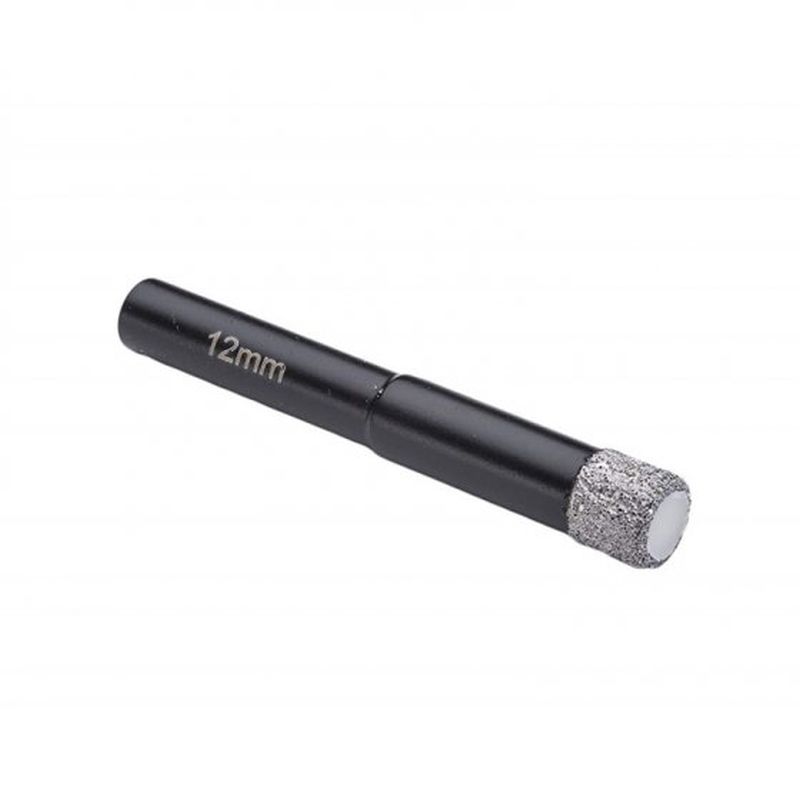

DESCRIPTION: The P6-ATD auto-cool diamond tile drills are filled with wax that melts during drilling - this keeps the diamonds cool meaning there is no need to apply a secondary coolant such as water. The fully exposed diamonds are vacuum brazed directly to the tip of the drill. Vacuum brazing is a material joining process which offers significant advantages in terms of cleanliness, joint strength and integrity making the P6-ATD drills durable and convenient to use.
MACHINE SUITABILITY: Cordless drill and corded drill.
SUITABLE FOR USE ON: Tiles - Ceramic, Tiles - Granite, Tiles - Limestone, Tiles - Marble, Tiles - Porcelain, Tiles - Slate
STANDARDS:
•EN13236: European Standard that regulates the safety requirements for super abrasive (diamond) products.
•ISO9001:2010 Quality Management System: Standard designed to help ensure organizations meet the needs of their customers.
WAX FILLED DIAMOND TILE DRILL TIPS:
•Mark the tile and place the drill tip at a 45-degree angle.
•Start drilling and level the drill once the tile surface is scored.
•Drill using a slight oscillating motion until the hole is complete.
•If drilling continuous holes, it is recommended to dip the drill tip in water after each hole to re-solidify the wax.
•Do not use unnecessary pressure, the weight of the machine is sufficient.
•Use at speeds between 800 - 2000rpm.
•For harder tiles use a slower rpm / for softer tiles use a faster rpm.
Specifications
APPLICATION: Drilling
PRODUCT CATEGORY: Diamond Tile Drills
PERFORMANCE LEVEL: 6 Star (Professional)
SUITABLE FOR USE ON: Tiles - Ceramic, Tiles - Granite, Tiles - Limestone, Tiles - Marble, Tiles - Porcelain, Tiles - Slate
MACHINE TYPE: Cordless Drill, Corded Drill
Size: 12 x 80mm
