DESCRIPTION:

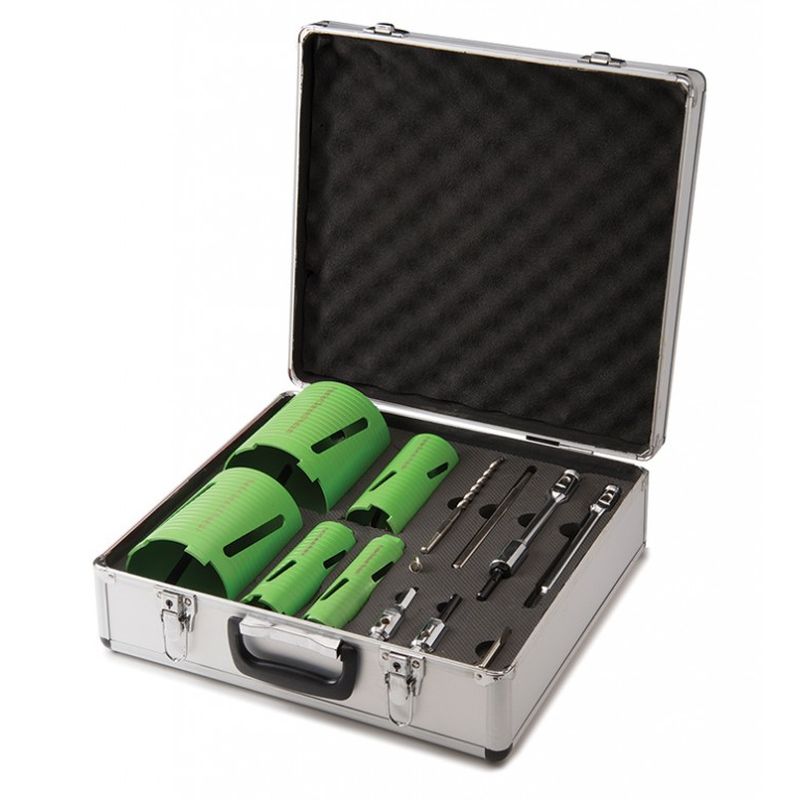

SITE TUFF dry diamond cores have been developed by Premier Diamond Products using over 25-years’ experience and knowledge. The combination of quality diamond grit and bond powders used in the segments ensures that SITE TUFF cores will drill fast and offer good life across a range of popular building materials. This twelve-piece set comprises of five cores and seven accessories, providing everything you need to start dry diamond coring.
FEATURES:
Dedicated UK bond system, spiral barrel and ½˝ BSP female thread.
MACHINE SUITABILITY:
Diamond Core Drills and SDS Plus Drills with Slipping Clutch
SUITABLE FOR USE ON:
Bricks - Class B Engineering, Bricks - Standard Facing Bricks, Concrete - Roof Tiles, Concrete Blocks - Lightweight 3 to 7 Newton, Concrete Blocks - Medium Density 7 to 12 Newton, Concrete Blocks - Solid Density 12+ Newton, York Stone
SET CONTENTS
Cores: 42, 52, 65, 117 and 127mm
Accessories: Chuck and SDS adaptors, chuck and SDS extensions, A-taper drill bit, guide rod and drift keyDOWNLOAD SPEC SHEET
STANDARDS:
EN13236: European Standard that regulates the safety requirements for super abrasive (diamond) products.ISO9001:2010 Quality Management System: Standard designed to help ensure organizations meet the needs of their customers.
TIPS FOR DRY DIAMOND CORES:
Maximum performance can be achieved by using a purpose made dry diamond core drill fitted with a slipping clutch. These machines are a minimum of 850 watts and have a high RPM to ensure the diamond segments work to their full potential. SDS plus drills can be used to dry core drill, although the lower RPM will result in slower drilling, especially in harder and/or damp materials.
N.B. Dry diamond core drills should not be used on hammer action.
Specifications
SUITABLE FOR USE ON: Bricks - Class B Engineering, Bricks - Standard Facing Bricks, Concrete Blocks - Lightweight 3 to 7 Newton, Concrete Blocks - Medium Density 7 to 12 Newton, Concrete Blocks - Solid Density 12+ Newton, Concrete - Roof Tiles, York Stone
MACHINE TYPE: Diamond Core Drills, SDS Plus Drills with Slipping Clutch
